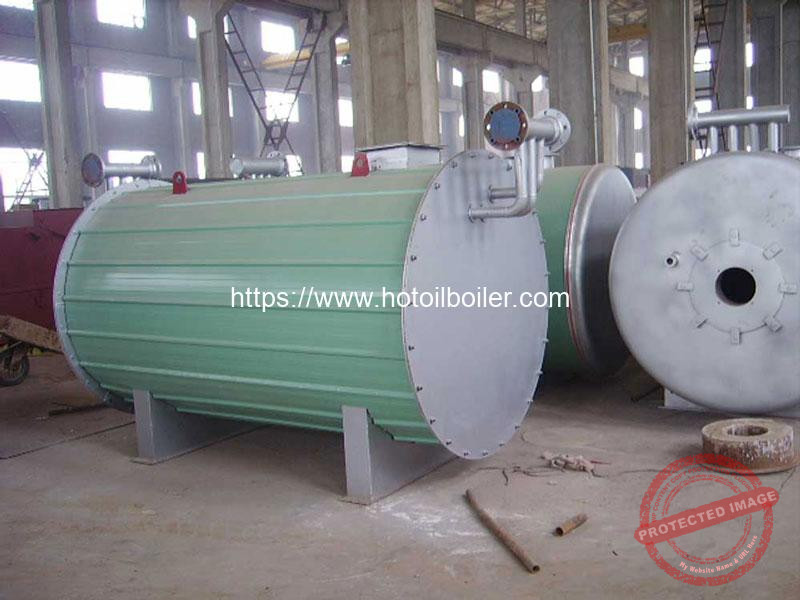

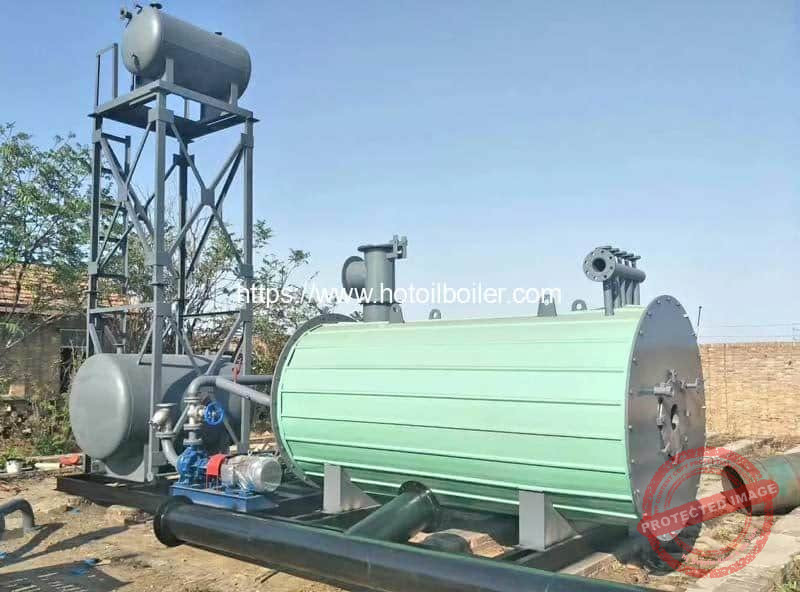

Horizontal YYW Diesel Oil Fired Thermal Oil Boilers use diesel or light oil as fuel, the thermal oil is heated in the tube. Using the circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment. At last, the oil return back the thermal oil heater. Two return structure enhance the thermal efficiency and lower flue gas temperature. Thicker insulated material layer makes radiating at minimum limit. All heaters are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes coal fired thermal oil boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm functions.With characteristic of relatively high and stable medium temperature under low pressure, and equipped with perfect running control system and safety monitoring apparatus, it has been widely used in the shipping business that transport chemical material, heavy oil, asphalt and drying industry.
Table of Contents
Advantage Feature of YYW Diesel Oil Fired Thermal Oil Boilers
As we know, both water and steam are used as heat carriers in process heating systems. But at temperatures above 100℃, water and steam requires a corresponding higher operating pressure. In industrial heating this high temperature level is often a demand. In order to achieve the necessary high output of the process, you must design very high pressures steam boiler or water heater and this cost is very high and danger.
Thermal oil boilers, a special oil-based thermal fluid are used as the heat carrier – instead of water or steam. This thermal fluid-also called heat transfer fluid – operates at atmospheric pressure all the way up to 300℃. Thermal oil offers the user high temperature at very low pressures.
Why choose hot oil heater
1) High temperatures up to 350°C at atmospheric pressure
2) Choice-free set-points of the thermal oil outgoing temperature
3) Supreme part-load operations
4) No risk of corrosion
5) Can be used as for both cooling below 0°C and above 100°C
6) Low maintenance costs (no dynamic influences, no leaking)
7) Quiet in operation
8) Easy to operate ( does not require boiler certified staff etc.)
9) Fluid sample analyzing that determine the condition of the system
10) No risk of freezing damages in cold regions.
Thermal Water & Steam Boiler requires extreme pressure in the level of high temperatures that is not economical due to high operating and owning costs. This situation paves the way for strengthening the distinctive position of Thermal Oil Boilers

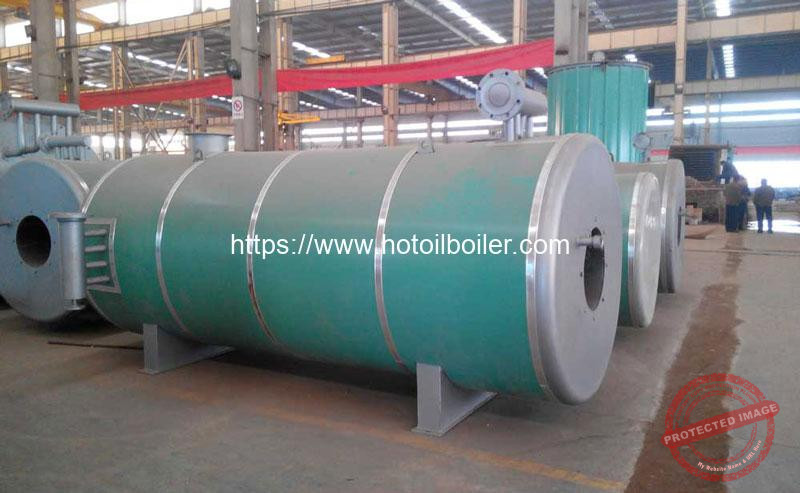

Parameter Table of YYW Diesel Oil Fired Thermal Oil Boilers
| Item | YYW60 | YYW120 | YYW180 | YYW240 | YYW350 | YYW470 | YYW700 | YYW950 | YYW1200 | YYW1400 | |
| Power | 104kcal/h | 5 | 10 | 15 | 20 | 30 | 40 | 60 | 80 | 100 | 120 |
| Capacity | MW | 0.06 | 0.12 | 0.18 | 0.24 | 0.35 | 0.47 | 0.7 | 0.95 | 1.2 | 1.4 |
| Theraml Efficiency | % | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 83 | 84 |
| Pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Max. Temp. | °C | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Circulation Oil | m3/h | 10 | 12.5 | 20 | 20 | 40 | 60 | 80 | 100 | 100 | 100 |
| Oil Pipe | DN | 50 | 50 | 65 | 65 | 80 | 100 | 100 | 125 | 125 | 125 |
| System Power | KW | 5 | 5 | 5 | 8 | 10 | 15 | 20 | 45 | 55 | 55 |
| Fuel | diesel.oil.gas.etc. | ||||||||||

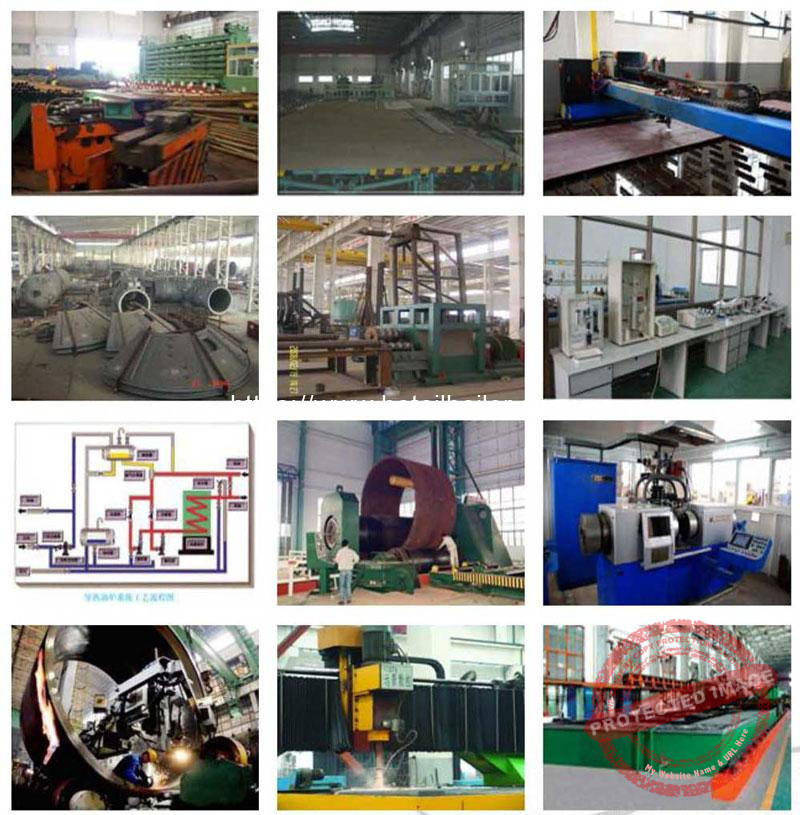

Thermal Oil Boiler Production Equipment
Factory Visit
Company Profile
Romiter Group Limited are committed to manufacturing and exporting complete enery saving heating equipment, including thermal oil boiler (Thermal fluid heat transfer product), thermal oil steam generator, cryogenic storage Dewar. After many years reach & development, Romiter Group can provide coal fired thermal oil boiler, gas fired thermal oil boiler, diesel fired thermal oil boiler, electric heating thermal oil boiler, coal fired molten salt heater, gas or oil fired molten salt heater and all type liquid gas vacuum cryogenic storage Dewar.
