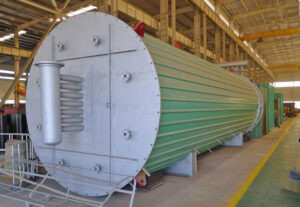

Oil/Gas Fired Molten Salt Heaters is used for high temperature heating. With gas & lpg as fuel, molten salt as heat carrier, RYQ series gas fired molten salt heaters sends the hot liquid molten salt by circulation pump to the heating using equipment, and then returns the liquid back to the furnace for heating again. It is a special industrial heater under direct liquid circulation. In a high temperature of 350 – 500 ℃, Thermal oil heater cannot be used and only molten salt heat carrier can reach such high temperature.
The whole system is composed of heating furnace, circulation pump, melting slot. The molten salt in the melting slot is pumped into the heating furnace by the circulation pump for heating, and then is pumped into the using equipment in a certain temperature. The molten salt will return back into the melting slot after supplying the heat. Molten Salt Heaters can be used under lower operating pressure and gets higher operating temperature. The heat supplying temperature is stable and can be adjusted accurately. It works stably within adjusted load section and keeps optimum thermal efficiency. It possesses the characteristics of complete operating control and safety monitoring device etc.
Table of Contents
Parameter Table of Oil/Gas Fired Molten Salt Heaters
| Model | RYL-1200Y | RYL-2000Y | RYL-2400Y | RYL-3000Y | RYL-3500Y | RYL-4600Y | RYL-6000Y | |
| Rated Power | Kcal | 100*104 | 160*104 | 200*104 | 250*104 | 300*104 | 400*104 | 500*104 |
| Kw | 1400 | 1900 | 2400 | 3000 | 3500 | 4600 | 6000 | |
| Thermal Efficiency % | % | ≥68（not include waste heat recovery) | ||||||
| Rated Pressure | Mpa | 1.1 | ||||||
| Molten Salt Temerture | ℃ | 450 | ||||||
| Molten Salt Volume | m3/h | 80 | 90 | 100 | 120 | 140 | 160 | 250 |
| Connection Diameter | DN | 125 | 150 | 200 | 250 | |||
| Power Consumption | Kw | 80 | 90 | 100 | 120 | 120 | 160 | 240 |
| Height | mm | 4200 | 6700 | 7000 | 7600 | 7800 | 8400 | 9600 |
| Diameter | mm | 1800 | 2200 | 3000 | 3000 | 3250 | 3400 | 3500 |
| Weight | kg | 7000 | 10000 | 15000 | 20000 | 26000 | 34000 | 46000 |

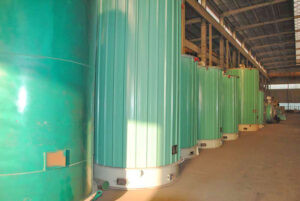

Molten Salt Heater Production Equipment
