12KW Electric Heating Hot Oil Boilers

Electric heating hot oil boiler (also known as heat conduction oil heater), the electric heater is directly inserted into the thermal oil (heat conduction oil) for direct heating. A circulating pump is used to create liquid-phase circulation of heat conduction oil, thus, to transfer the heat to one or several pieces of heat using equipment. After unloaded in the heat using equipment, the heat conduction oil will return to the heater via the circulating pump, again to absorb heat, and transfer the heat to the heat using equipment. This process is repeated again and again, realizing continuous transfer of heat. As a result, the temperature of objects being heated rises, and heating requirements are fulfilled.

Application of Electric Heating Hot Oil Boilers

Electric heating hot oil boiler temperature control by digital-display attemperation, with super temperature alarm, low oil level alarm, super pressure alarm functions, and it is widely used in chemical, petroleum, machinery, printing and dyeing, textile, food, the ships, the film industries. It is a kind of high energy efficiency heating equipment.

Feature of Electric Heating Hot Oil Boilers

1.    Low working pressure
Liquid phase transportation heat energy，can under low working pressure and get high temperature, heat carrier is smaller than the water saturation steam pressure 70 ~ 80 times，general heating for less than 0.3 MPa.
2.    High heating temperature
Heat conduction oil heating furnace can achieve the temperature of 280 ℃.The heating temperature automatic control, high sensitivity, heating stability.
3.    Safe and reliable
Heat conduction oil furnace is equipped with perfect operation control and safety monitoring device, easy operation, safety and reliability.
4.    Environmental protection design
Electric heating hot oil boiler is provided with new electrical heating system，using electric instead of coal, saving investment, environmental and no pollution, and heat conduction oil furnace heating up fast, high efficient and more economic.

System Drawing of Electric Heating Thermal Oil Heaters

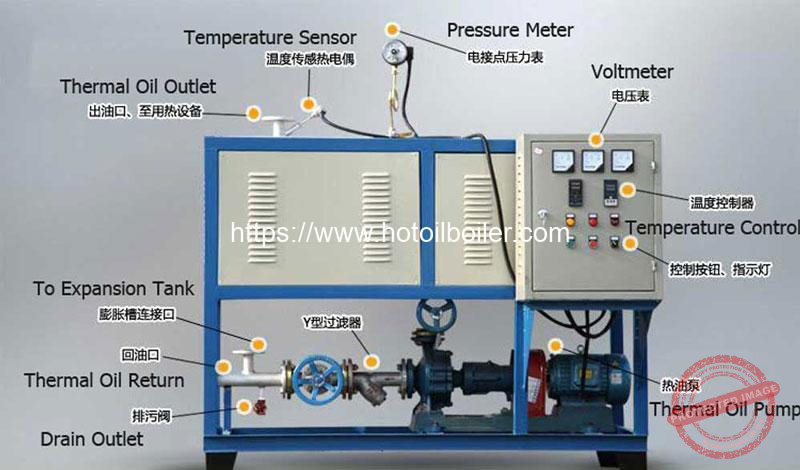

Constituent Part of Electric Heating Thermal Oil Boilers

（1）    Shell：
Housing material：carbon steel；
Inner drum size：Φ159×1200mm
Heat preservation material：aluminum silicate wool；
Thermal insulation layer thickness：120mm；
Connection caliber：DN32；
（2）    Heating structure：
Heating tube material: stainless steel 304；
Total power：12 KW；
Voltage：380 V；
（3）Hot oil pump：
Motor power：1.5KW；
Pump flow：6m3/h；
Delivery lift：28m；
（4）Expansion slot：
Size：Φ300×400mm；
Material：carbon steel；
（5）Control system：
Including body，XMT temperature control meter，fast melting，thermocouples，air switch，
solid-state relay，electric heating table， voltmeter， etc；
（6）Accessories:
level gauge, cut-off valve, pressure gauge, filter, the exhaust valve, drain valve, etc.
Please note：Electric heating hot oil boiler with the function of pressure interlock alarming，liquid level interlock alarming，the heater temperature alarm and pump interlocking

Parameter Table of Electric Heating Thermal Oil Heaters
